PHỤ KIỆN CHO HEO

Double L has a variety of swine accessories for your hog supply and equipment needs including Winches, Curtain Pockets, Two-Way Sorting Panels, Sow Feeders, Feed Hoppers, PVC Creep Dividers, and Thermostats. If you do not see what yoiu are looking for here or have any questions reach out to our team so they can assist you.

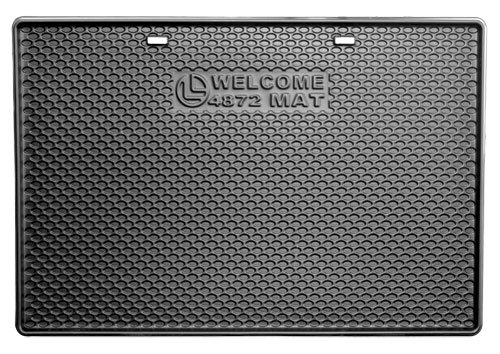

Tấm lót cho heo

Dimensions: 4′ x 6′ (1.2 m x 1.8 m)
.115″ (2.9 mm) thickness
Ship Weight: 13 lbs ( 5.9 kg)
1-1/4″ feed lip height

Agritherm Brooder Heater

Part #29001
Dimensions (in.) 19L x 8.5W x 8H
Install Height: 4-5 ft.

Weight 4lbs.

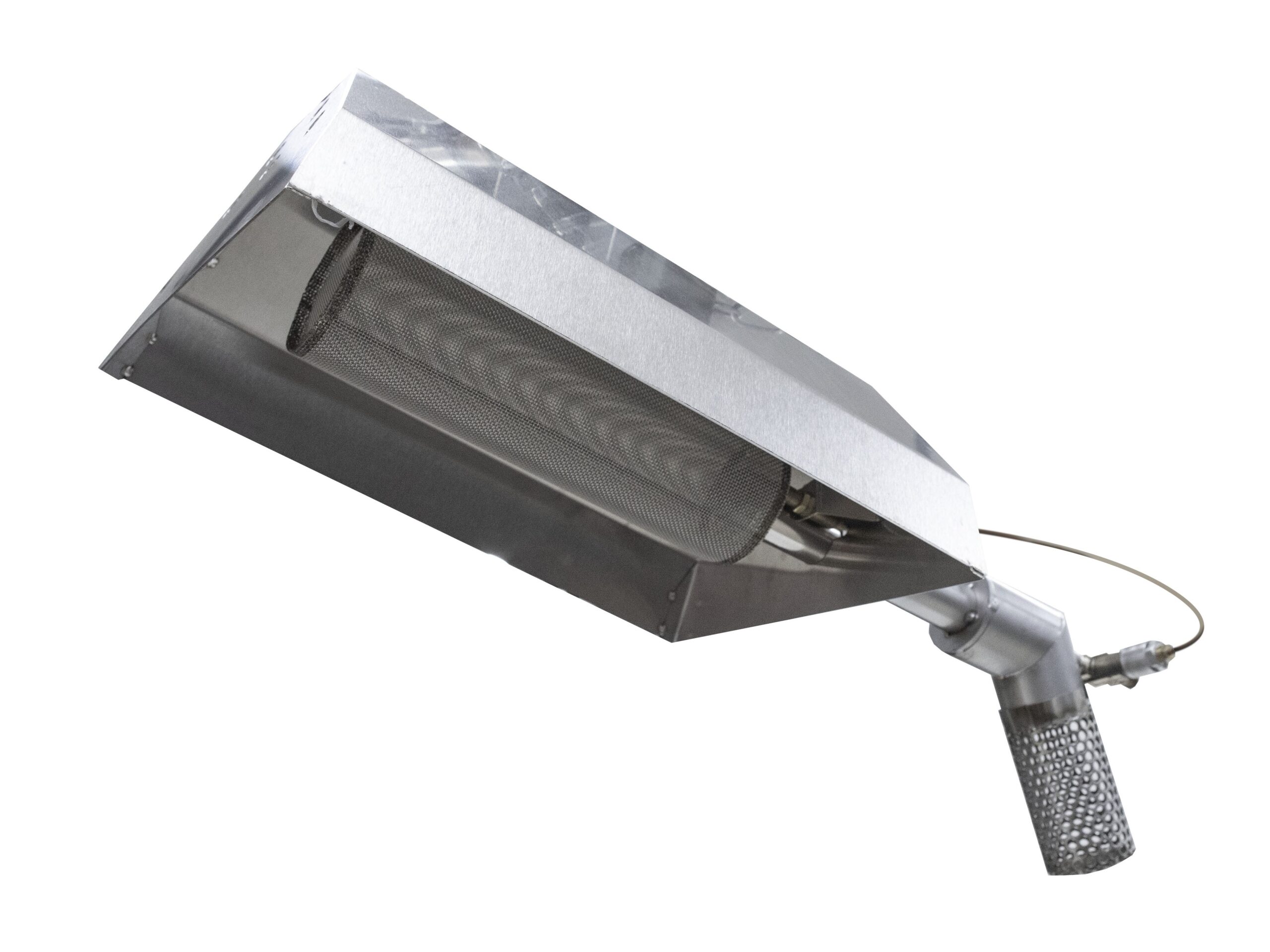

Agritherm Tube Heater

  • 40,000-175,00 BTU/Hr. Rating

 120 Volt- 60Hz

Fuel Supply is Natural Gas or LP



EcoDrive 300

  • Part No         17001
    Motor            0.35 HP 115 1-Phase 60hz
    Torque          300 Nm
    Belt Speed    28 in/min.
    Pulls
              2 Belts    1050 lbs/belt- 2100 lbs. total
              1 Belt       809 lbs/belt

EcoDrive 90

  • Part No                170020
    Motor                   24VDC 60hz
    Torque                 90 Nm
    Belt Speed          6 in/min.
    Pulls
  •          2 Belts     386 lbs/belt – 772 lbs. total
  •          1 Belt       750 lbs/belt

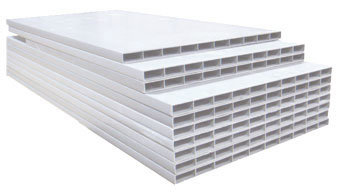

BỘ CHIA PVC CREEP

Part 12837 37″ PVC Divider
Part 12890 90″ PVC Divider Part 12560-14 Two-Way Post
Part 12560-20 U-Channel
20″ high x 7/8″ thick panels or
508 mm high x 22.2 mm thick
and can be field cut to fit

MÁNG ĂN HDPE STF1415

Part 16450
14″W x 15″H (355.6 x 381 mm)
Ship Weight: 7.25 lbs (3.3 kg)

Bảo vệ môi bằng thép không gỉ

30″ x 36″ TWO-WAY SOLID SORTING PANEL

Part 16460
Framed Opening: 30″ x 36″
Ship Weight: 14 lbs

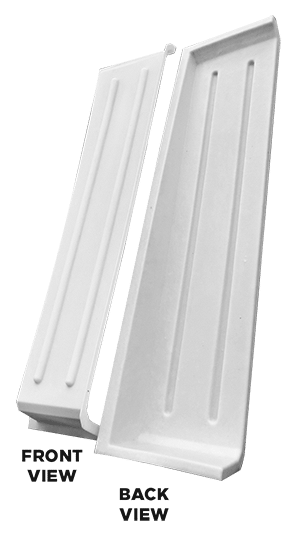

ROTOMOLDED CURTAIN POCKETS

Part 16495

18″ x 66″H (457.2 x 1,676.4 mm)
21 lbs / pr. (9.5 kg)

Part 16494

18″W x 78″H (457.2 x 1,981.2 mm)
22 lbs / pr. (10.0 kg)

Part 16498

18″W x 84″H (457.2 x 2,133.6 mm)
23 lbs / pr. (10.4 kg)

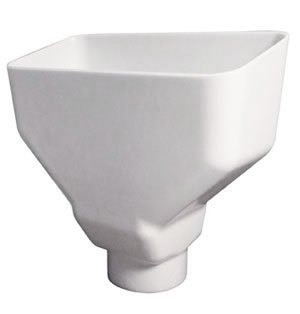

4″ POLY FEED HOPPER

Part 16454
14″L x 6″W x 13.3″H
(355.6 x 152.4 x 336.6 mm)
Ship Weight: 3 lbs (1.4 kg)
Holds approx. 20 lbs (9.1 kg)

The 4″ Poly Feed Hopper from Double L makes it easy to hand
feed sows. Durable and easy to clean, the 4″ Poly Feed Hopper
has tapered sides.

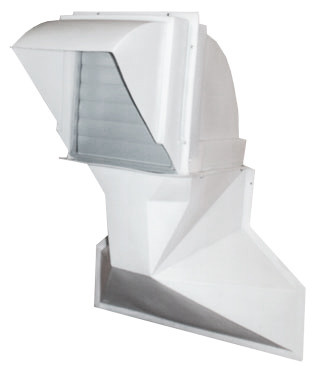

MÁNG CHUYỂN TIẾP MUI VÀ NHÀ

Designed to be used with a 20″ fan, the hood consists of a 1-1/2 90 degree pit transition hood. A PVC shutter is included and is placed between the two hood parts before they are bolted together. The 90 degree hood may be mounted to a pump-out cover. The sidewall housing is designed to be used with the pit hood with the hood and housing bolted together. Heavy poly construction allows for back fill to normal ground level. 20″ housing covers a maximum opening of 13″ high x 50″ wide.

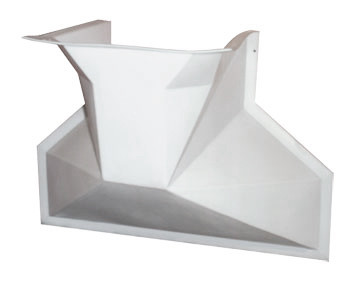

MÁNG CHUYỂN TIẾP SIDEWALL

Double L’s Sidewall Transition Housing is designed to be used with a 24″ fan and hood. The Sidewall Transition Housing and Hood are bolted together. Heavy poly construction allows for back fill to normal ground level. 24″ housing covers a maximum opening of 18″ high x 50″ wide.

BỘ ĐIỀU KHIỂN NHIỆT CƠ MỘT TẦNG TH415

Phần 50165

Designed to provide precise control of heating and cooling Double L’s TH415 Single Stage Mechanical Thermostat is the perfect addition to poultry houses. Constuction of the thermostat gives it a water-resistant NEMA 4x enclosure resistant to high humidity, airborne contaminants, and most corrosive conditions. The TH415 is equipped with a fast-responding stainless steel sensor that resists corrosion and has a 2.5 degree differential. While in the field operators can simply recalibrate the thermostat with its adjustable dial. A 316 stainless-steel sensing coil is mounted on the side of the watertight ABS plastic enclosure.

With a temperature range of 40-104 degrees Fahrenheit, the TH415 is designed for controlling ventilation and heating equipment in even the harshest of Ag poultry house environments.



XẾP HẠNG ĐIỆN:
   Vôn AC 50/60 HZ
120
240
   Amps đầy tải.
12
10
   Khóa Amps Rotor
48
36
   Không cảm ứng
16
16
   Nhiệm vụ thí điểm 125 VA 120/240 VAC  –

BỘ ĐIỀU KHIỂN RÈM T152-C

Phần 50168
Double L’s T152-C Curtain Controller Thermostat is designed to control curtain – inlet actuators on temperature. 316 stainless steel sensor for quick response. Large, easy to read knob, and calibration. A five-minute cycle timer may enhance operation of system. Simply tie the power supply to T152-C. The T152-2 Thermostat water-resistant NEMA 4x enclosure is resistant to high humidity, airborne contaminants, and most corrosive conditions. Temperatures range from 40º to 100ºF.



XẾP HẠNG ĐIỆN:
   Vôn AC 50/60 HZ
120
240
   Amps đầy tải.
12
10
   Khóa Amps Rotor
48
36
   Không cảm ứng
16
16
   Nhiệm vụ thí điểm 125 VA 120/240 VAC  –

BỘ ĐIỀU CHỈNH HAI TỐC ĐỘ T152-2

XẾP HẠNG ĐIỆN:
   Vôn AC 50/60 HZ
120
240
   Amps đầy tải.
12
10
   Khóa Amps Rotor
48
36
   Không cảm ứng
16
16
   Nhiệm vụ thí điểm 125 VA 120/240 VAC  –



Phần 50167

Double L’s T152-2 Two-Speed Thermostat is designed to be used with fans that have a high/low speed built-in. The T152-2 Two-Speed Thermostat has a 316 stainless steel sensor for quick response and a large easy to read knob and calibration. The 152-2 Thermostat water-resistant NEMA 4x enclosure is resistant to high humidity, airborne contaminants, and most corrosive conditions. Temperatures range from 40º to 100ºF.
