Broilers SIDEWALL INLETS

Double L has been a leader in the advancement of Broilers ventilation in chicken and turkey houses over the years. Achieving optimal performance from a broiler flock depends on executing ventilation as correctly and efficiently as possible. During minimum ventilation periods, producers are concerned about moisture, litter conditions, keeping birds warm, and air quality. The more control producers have over air quality, air temperature, and energy usage, the more control they will have over their paycheck at the end of the grow-out.

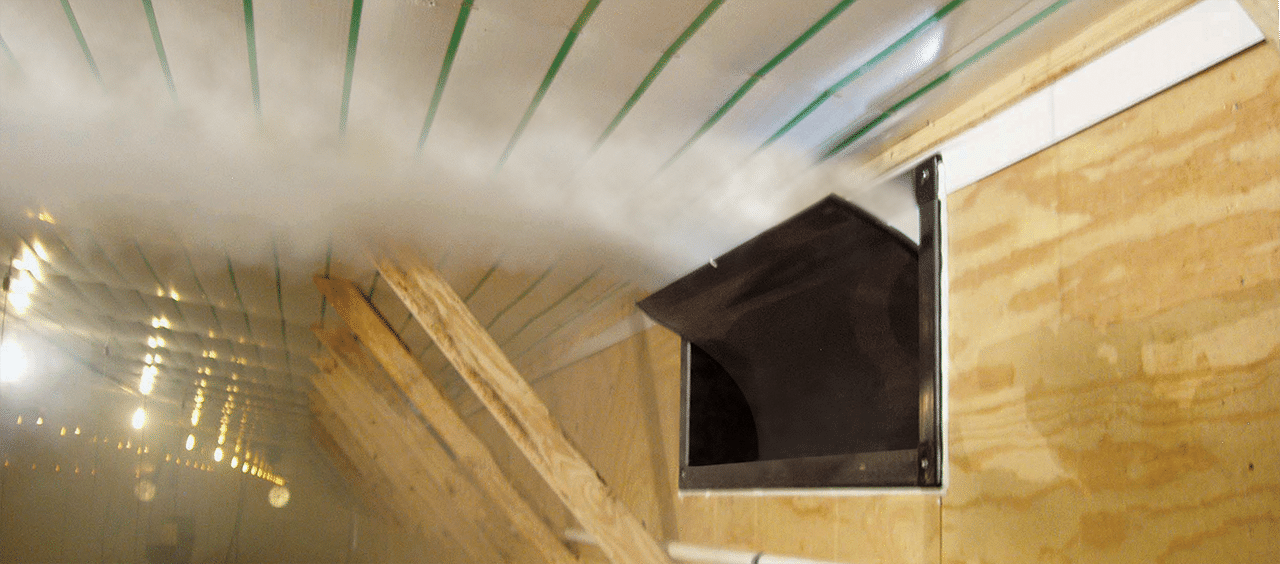

Air entering through properly designed sidewall inlets (also known as vents) will allow the air jet to attach to the ceiling, travel along the ceiling until it makes it to the center of the house, and gently move down towards the floor. It is essential to maximize the travel distance along the ceiling so the cool incoming air will be sufficiently heated by the warm air collecting at the ceiling. The mixing of the cook, damp air with the warm air at the top of the house is great for air mixing, but the uniform temperature being created isn’t automatically the greatest benefit to be reaped from this system.

The sidewall Broilers vents offered by Double L help to keep your air clean, lower your heating costs, and improve litter quality. As the Broilers industry is evolving, house design and construction are evolving too. The basic principles for ideal air mixing become more difficult to achieve in the wider houses (larger than 60 ft. wide) without the correct equipment. The European Sidewall Vent from Double L has a curved blade that has the ideal design to achieve complete air mixing in houses. The curved blade helps direct more air across the ceiling and creates an efficient air jet that will reach the center of these wider houses with ease.

8” RetroAire Inlet

– Part #90582

– Approx. 2,400 cfm @ 0.1sp

– Rough Opening: 44.5″ x 8″

– Inlet OD: 46″ x 10.75″

– Custom Sizing Available With part #90587

13” RetroAire Inlet

– Part #90583

– Approx. 3,235 cfm @ 0.1sp

– Rough Opening: 41.5″ x 11.75″

– Inlet OD: 43″ x 14.5″

– Custom Sizing Available With part #90588

Deluxe DirectAire 4413 Inlet

INSULATED – Part 90570CH
Framed Opening: 44 1/2″ x 13 1/2″
Inlet OD: 47.25″ x 16.875″
Approx. 3,266 cfm @ .1 SP
Ship Weight: 13 lbs
70 inlets / pallet
5 inlets / box
Imported

Deluxe DirectAire 4113 Inlet

INSULATED Part 90572CH
Approx. 3,050 cfm @ .1 SP
Ship Weight: 12 lbs
Framed Opening: 41 1/2″ x 13 1/2″
Inlet OD: 44.50″ x 16.875″
70 inlets / pallet
5 inlets / box
Imported

DirectAire 4408 Insulated Air Inlet

DirectAire 4408 Inlet

INSULATED – Part 90553CH
Framed Opening: 44 1/2″ x 8″
Inlet OD: 48″ x 11.25″
CFM: 1,669 cfm @ .1 SP
Ship Weight: 8.5 lbs
120 vents / pallet
5 vents / box
Imported

DirectAire 4408 Insulated Air Inlet

DirectAire 4108 Inlet

INSULATED – Part 90557CH
Framed Opening: 41 1/2″ x 8″
Inlet OD: 44.25″ x 11.25″
Approx. 1,555 cfm @ .1 SP
Ship Weight: 8 lbs
120 vents / pallet
5 vents / box
Imported

The patented TJP TopJet Gravity Wall Inlets are efficient counterweight vents with minimal expense used worldwide. Each vent blade opens from the top, directing air to the center peak of the house with no open ends or bottom leakage. TJP Inlets are available in two different size options: TJP1255 TopJet Gravity Wall Inlet  and the TJP2655LT TopJet Gravity Wall Inlet

TJP1255 TopJet Gravity Air Inlet

پیٹنٹ نمبر 6,475,078

TJP1255 / TJP1265 TOPJET
کشش ثقل کا بہاؤ سائیڈ وال وینٹ

TJP1255 Part 90740
TJP1265 Part 90741
252 inlets / pallet
21 inlets / box

Approx. 434 cfm’s at .125 SP

TJP1255 opens at .055 SP
TJP1265 opens at .065 SP
One Inlet Framed Opening: 22″ x 6.5″
Two Inlets Framed Opening : 46″ x 6.5″

امریکہ کا بنا ہوا

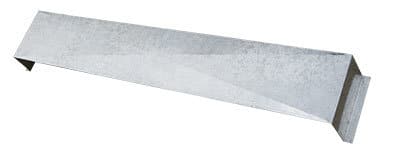

TJP1255 Wind Deflector

JP1255 گریویٹی فلو ونڈ فلیکٹر

Part 90715
Model #WD48
48″ flange to flange
Imported
TJP2655LT and TJP2665LT TopJet Gravity Air Inlets

پیٹنٹ نمبر 6,475,078

TJP2655LT, TJP2665LT, TJP2675LT
TOPJET سائیڈ وال وینٹ

ٹی جے پی 2655 پارٹ 90735
ٹی جے پی 2665 پارٹ 90738

Framed Opening: 48.5″ x 9″
TJP2655 opens at .055 SP
TJP2665 opens at .065 SP
TJP2675 opens at .075 SP

امریکہ کا بنا ہوا

TJP1355LT TopJet Gravity Air Inlet

پیٹنٹ نمبر 6,475,078

TJP1355LT / TJP1365LT TOPJET Sidewall Inlet

TJP1355 – Part 90750
TJP1365 – Part 90751
Framed Opening: 25″ x 9″

TJP1355 .055 SP پر کھلتا ہے۔
TJP1365 .065 SP پر کھلتا ہے۔
TJP1375 .075 SP پر کھلتا ہے۔

امریکہ کا بنا ہوا
