Layers Wall Inlets

EcoTight Sidewall Rack & Pinion

• Interior mounted Rack & Pinion Operators
• Eliminates freezing issues
• Hi-profile gaskets for an optimum seal

Deluxe DirectAire 4413 Inlet

INSULATED – Part 90570CH
Framed Opening: 44 1/2″ x 13 1/2″
Inlet OD: 47.25” x 16.875”
Approx. 3,266 cfm @ .1 SP
BESS Labs Test #19260
70 inlets / pallet
5 inlets / box
Phần 90521CH Mở thô
43,75 "x 23,5"
Khoảng. 4,400 cfm @ 0,125 SP
Trọng lượng tàu: 24 lbs
Nhập khẩu

Deluxe DirectAire 4113 Inlet

INSULATED – Part 90572CH
Approx. 3,050 cfm @ .1 SP
Framed Opening: 41 1/2″ x 13 1/2″
Inlet OD: 44.50” x 16.875”
70 inlets / pallet
5 inlets / box
Phần 90521CH Mở thô
43,75 "x 23,5"
Khoảng. 4,400 cfm @ 0,125 SP
Trọng lượng tàu: 24 lbs
Nhập khẩu

DirectAire 4108 Inlet

INSULATED – Part 90557CH
Framed Opening: 41 1/2″ x 8″
Inlet OD: 44.25” x 11.25”
Approx. 1,555 cfm @ .1 SP
120 vents / pallet
5 vents / box
Phần 90521CH Mở thô
43,75 "x 23,5"
Khoảng. 4,400 cfm @ 0,125 SP
Trọng lượng tàu: 24 lbs
Nhập khẩu

DirectAire 4408 Inlet

INSULATED – Part 90553CH
Framed Opening: 44 1/2″ x 8″
Inlet OD: 48” x 11.25”
Approx. 1,669 cfm @ .1 SP
120 vents / pallet
5 vents / box
Phần 90521CH Mở thô
43,75 "x 23,5"
Khoảng. 4,400 cfm @ 0,125 SP
Trọng lượng tàu: 24 lbs
Nhập khẩu

8” RetroAire Inlet

– Part #90582

– Approx. 2,400 cfm @ 0.1sp

– Rough Opening: 44.5″ x 8″

– Inlet OD: 46″ x 10.75″

– Available in 13″ Size

13” RetroAire Inlet

– Part #90583

– Approx. 3,388 cfm @ 0.1sp

– Rough Opening: 41.5″ x 11.75″

– Inlet OD: 43″ x 14.5″

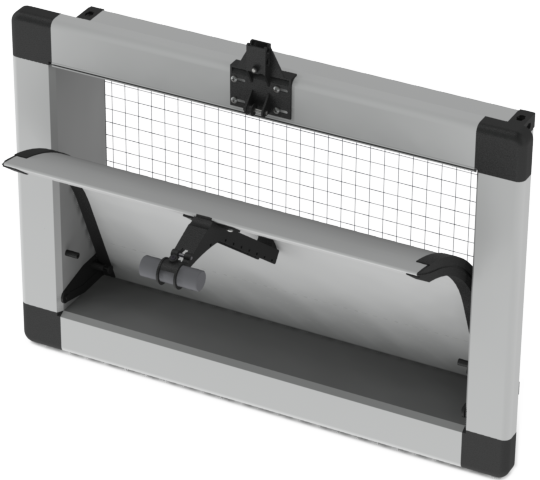

DirectJet 3317

– Part 753317

– Approx. 3,148 cfm @ 0.1 SP

– Dimensions: 33”L x 17”H

– Available in other custom sizes

DirectJet 4431

– Part 764431

– Approx. 7,445 cfm @ 0.1 SP

– Dimensions: 44”L x 31”H

DirectJet 5631

– Part 765631

– Approx. 9,505 cfm @ 0.1 SP

– Dimensions:56”L x 31”H

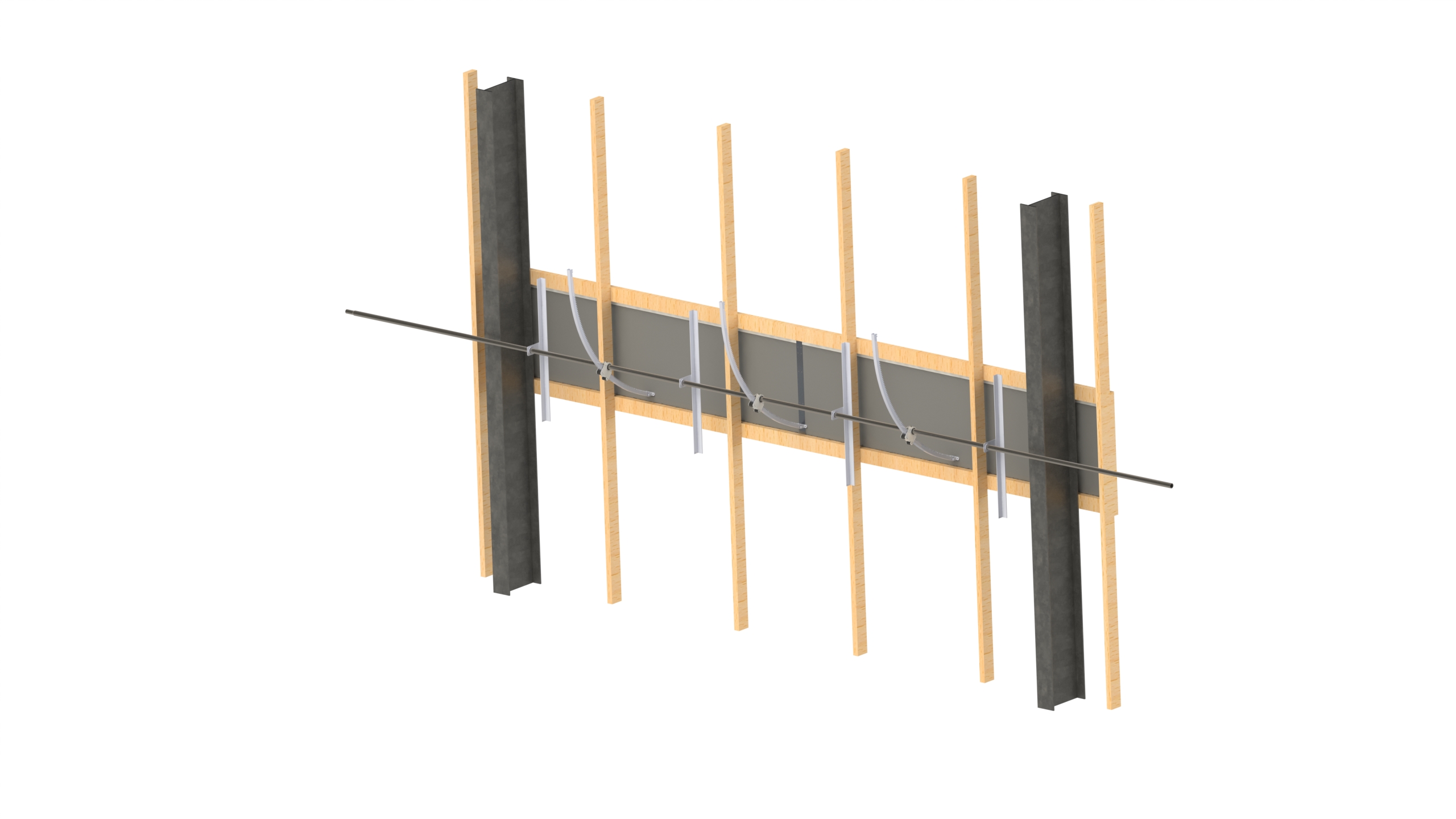

DirectJet Sliding Wall Inlet

– Custom Sizes Available

– Contact Our Team For Part Number

Double L Pop Door

– Custom Sizes Available

– Contact Our Team For Part Number
